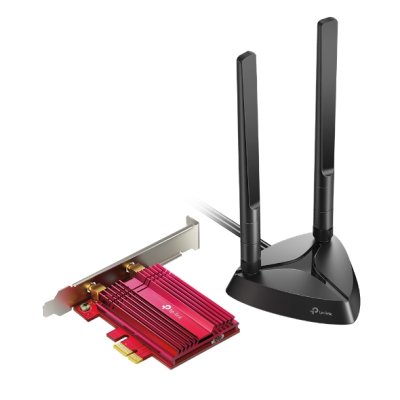

PCIe Wireless Adapter TX3000E TP-LINK AX3000 Wi-Fi 6 Bluetooth 5.2

รับประกันตลอดอายุการใช้งาน
฿1,590
฿0
฿1,590
ราคาสมาชิก

฿0
ราคาสมาชิก
฿0

จำนวน
รายละเอียดสินค้า
BrandTP-LINK
ModelTX3000E
InterfacePCI Express x1/x4/x8/x16
Dimensions95.2 x 120.8 x 21.5 mm
Antenna TypeTwo High-Gain Dual Band Antennas

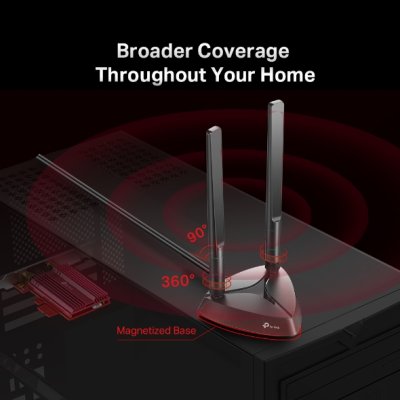

Magnetized Antenna Base
ChipsetIntel Wi-Fi 6 Chipset

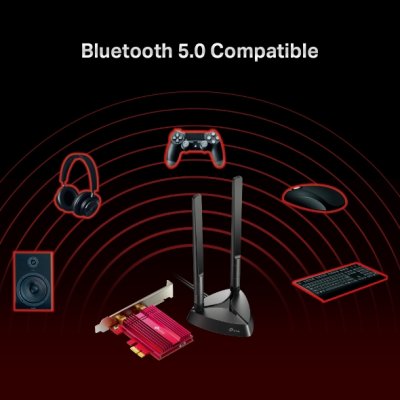

Standards and ProtocolsBluetooth 5.2, Bluetooth 5.0, Bluetooth 4.2, Bluetooth 4.0
InterfaceF_USB 2.0
Wireless StandardsIEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/g/b 2.4 GHz
Bluetooth 5.0/4.2/4.0

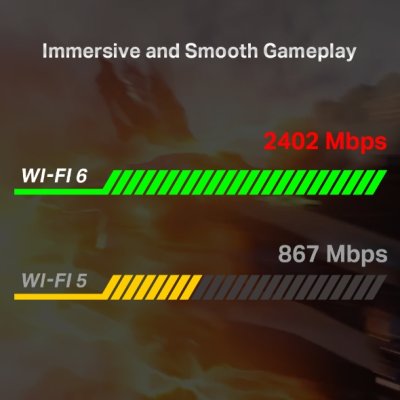

WLAN Signal Rate5 GHz
11ax: Up to 2402 Mbps(dynamic)
11ac: Up to 1733 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)
2.4 GHz
11ax: Up to 574 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic)
WLAN Reception Sensitivity

5 GHz :
11ax HT160:-56.25dBm
11ax HT80: -59dBm
11ax HT40: -62.25dBm
11ax HT20: -65dBm
11ac HT160:-62dBm
11ac HT80: -65.5dBm
11ac HT40: -69.75dBm
11ac HT20: -73.75dBm
11n HT40: -74.5dBm
11n HT20: -77.5dBm
11a 54Mbps: -77.75dBm
11a 6Mbps: -94.5dBm
2.4GHz :
11ax HT40: -60.75dBm
11ax HT20: -63.75dBm
11n HT40: -73dBm
11n HT20: -76.25dBm
11g 54Mbps: -76.5dBm
11b 11Mbps: -89dBm

WLAN Transmit Power5 GHz: 28dBm(FCC) / 23dBm(CE) (EIRP),
2.4 GHz : 24dBm(FCC) / 20dBm(CE) (EIRP)
WLAN ModesInfrastructure mode
Wireless SecuritySupport 64/128 bit WEP, WPA/WAP2/WPA3,
WPA-PSK/WPA2-PSK, 802.1x
Modulation TechnologyDBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM,
256-QAM, 1024QAM
CertificationCE, FCC, RoHS

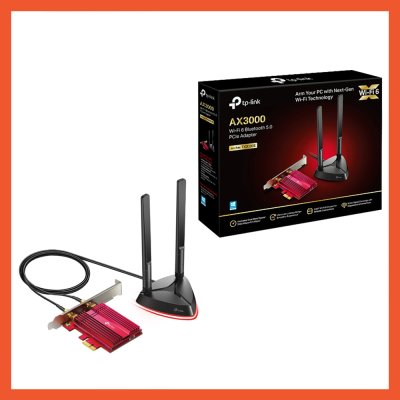

Package ContentsArcher TX3000E
Magnetized Antenna Base with 1m RF Cable
Two High Gain Antennas
Low-Profile Bracket
Bluetooth Header Cable
Quick Installation Guide
Resource CD
System RequirementsWindows 11/10(64-bit) only
